8051 Oscillator Circuits: The Heartbeat of Your Microcontroller

Introduction

In the world of microcontrollers, the 8051 family has stood the test of time, remaining a popular choice for embedded systems developers. At the core of every 8051 microcontroller lies a critical component: the oscillator circuit. This essential element serves as the heartbeat of the microcontroller, dictating its operational speed and overall performance. In this comprehensive guide, we’ll delve deep into the world of 8051 oscillator circuits, exploring their types, functionalities, and how to implement them effectively in your projects.

Understanding Oscillator Circuits

Before we dive into the specifics of 8051 oscillator circuits, let’s establish a solid foundation by understanding what oscillator circuits are and why they’re crucial for microcontroller operation.

What is an Oscillator Circuit?

An oscillator circuit is an electronic circuit that generates a repetitive, oscillating electronic signal, typically a sine wave or a square wave. In the context of microcontrollers, these circuits provide a clock signal that synchronizes all internal operations.

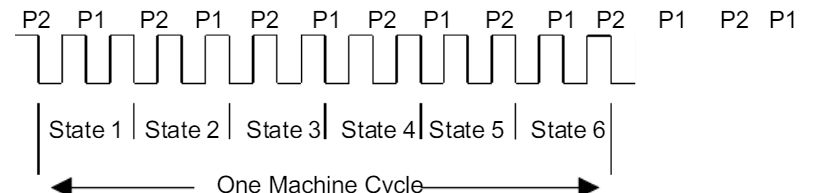

The smallest interval of time to accomplish any simple instruction or part of complex instruction is called as the machine cycle. The machine cycle is made up of six states. A state is the basic time interval for discrete operations of the microcontroller, such a fetching an opcode byte, executing an opcode or writing data byte. Two oscillator pulses define each state. That means, 8051 controller machine cycle is 12 clock pulses.

The Importance of Oscillator Circuits in 8051 Microcontrollers

The oscillator circuit plays a vital role in the 8051 microcontroller:

1. Timing Control: It provides the basic timing for the execution of instructions.
2. Synchronization: Ensures all internal components operate in harmony.
3. Speed Determination: The frequency of the oscillator directly affects the processing speed of the microcontroller.

The oscillator frequency selection is often dictated by serial communicated baud rate needs. Oscillator with frequency 11.0592 MHz works well for standard baud rates supported by PC.

Crystal frequency 11.0592 MHz gives machine cycle frequency of (11.0592/ 12) = 921.6 kHz.

UART divides the machine cycle frequency by 32 and then used by timer 1 to set baud rate. So time 1 gets 28800 Hz clock.

Time period of each clock tick: T0 = 1/f = 1/28800

Duration of timer : n*T0 (n is the number of clock ticks)

9600 baud ->duration of 1 byte: 1/9600

1/9600 = n*T0 = n*1/28800

n = f/9600 = 28800/9600 = 3 ->TH1 =-3 or FD hex.

Types of Oscillator Circuits for 8051 Microcontrollers

The 8051 microcontroller family supports various oscillator configurations. Let’s explore the most common types:

1. Crystal Oscillator Circuit

The crystal oscillator is perhaps the most widely used oscillator type for 8051 microcontrollers. It offers excellent frequency stability and precision.

How It Works

On Chip oscillator is a single stage inverter with parallel feedback resister. The XTAL1 and XTAL2 pins are input and output of the inverter, which can be configured with off chip oscillator circuit, like a crystal oscillator.

A crystal oscillator uses the piezoelectric effect of a quartz crystal to create an electrical signal with a precise frequency. When connected to the 8051’s XTAL1 and XTAL2 pins, along with two capacitors, it forms a feedback loop that sustains oscillation.

Circuit Diagram

In this diagram:

• Crystal is the quartz crystal
• C1 and C2 are load capacitors (typically 30pF for crystals up to 30MHz)

CL is load capacitance of the crystal oscillator, typically given by manufacturer. CI is the internal capacitance of the MCU. If the stray capacitance is negligible, then we need to satisfy the following equation

CL = (C1 X C2) /(C1 + C2) + CI

if C1 = C2 = CF, then

CL = CF/ 2 + CI

CF = 2 X (CL-CI)

Advantages

• High stability: Crystal oscillators provide very stable frequencies.
• Wide frequency range: Available from a few kHz to over 100MHz.
• Low cost: Relatively inexpensive for the precision they offer.

Disadvantages

• Susceptible to mechanical shock: Can be affected by vibrations.
• Temperature sensitive: Frequency can drift slightly with temperature changes.

2. Ceramic Resonator Circuit

Ceramic resonators offer a balance between the precision of crystal oscillators and the simplicity of RC oscillators.

How It Works

Similar to crystal oscillators, ceramic resonators use the piezoelectric effect, but with a ceramic material instead of quartz. They’re often used in applications where the utmost precision isn’t required but good stability is still needed.

Find more details here https://en.wikipedia.org/wiki/Ceramic_resonator.

Advantages

• More robust: Less susceptible to mechanical shock than crystals.
• Lower cost: Generally cheaper than crystal oscillators.
• Compact: Often come with built-in load capacitors, saving board space.

Disadvantages

• Less precise: Not as accurate as crystal oscillators.
• Limited frequency range: Typically available up to about 50MHz.

3. RC Oscillator Circuit

RC oscillators are the simplest type of oscillator circuit for the 8051, using only a resistor and a capacitor to generate the clock signal. They provide cost advantages to timing insensitive applications.

How It Works

An RC oscillator relies on the charging and discharging of a capacitor through a resistor to generate a clock signal. While not as precise as crystal or ceramic oscillators, they’re simple and inexpensive. The RC oscillator frequency is function of supply voltage, resister, capacitor, and operating temperature.

Different RC oscillator circuits can be found here https://en.wikipedia.org/wiki/RC_oscillator.

Advantages

• Simplicity: Easiest to implement with minimal components.
• Low cost: The most economical option.
• Flexible frequency: Easy to adjust frequency by changing R or C values.

Disadvantages

• Low precision: Frequency can vary significantly with temperature and voltage changes.
• Limited frequency range: Generally suitable only for lower frequencies.

Choosing the Right Oscillator Circuit

Selecting the appropriate oscillator circuit for your 8051 project depends on several factors:

1. Frequency Stability Requirements: If your application needs precise timing, a crystal oscillator is the best choice. For less demanding applications, ceramic resonators or RC oscillators may suffice.
2. Operating Frequency: Consider the desired operating frequency of your microcontroller. Higher frequencies generally require crystal or ceramic oscillators.
3. Cost Constraints: RC oscillators are the most economical, followed by ceramic resonators, with crystal oscillators being the most expensive.
4. Board Space: If space is at a premium, ceramic resonators with built-in capacitors can save room.
5. Environmental Factors: Consider temperature variations and mechanical stresses that may affect the oscillator’s performance.

Implementing Oscillator Circuits in Your 8051 Projects

Now that we’ve covered the types of oscillator circuits, let’s discuss how to implement them effectively in your 8051 projects.

PCB Layout Considerations

1. Keep It Close: Place the oscillator components as close to the 8051’s XTAL1 and XTAL2 pins as possible.
2. Isolate the Oscillator: Keep high-frequency signals and power lines away from the oscillator circuit to prevent interference.
3. Ground Plane: Use a solid ground plane under the oscillator circuit for better stability.
4. Symmetric Layout: For crystal and ceramic resonator circuits, aim for a symmetrical layout of the two load capacitors.

Debugging Oscillator Issues

If you’re experiencing problems with your oscillator circuit, consider these troubleshooting steps:

1. Check Connections: Ensure all components are properly soldered and connected.
2. Verify Component Values: Confirm that you’re using the correct capacitor values for your crystal or resonator.
3. Measure the Frequency: Use an oscilloscope to verify the output frequency at the XTAL2 pin.
4. Look for Interference: Check for nearby sources of electromagnetic interference that could be affecting the oscillator.
5. Temperature Testing: If possible, test the circuit across its intended operating temperature range to ensure stability.

Advanced Oscillator Techniques

For those looking to push the boundaries of 8051 oscillator design, consider these advanced techniques:

1. External Clock Sources

In some cases, you might want to use an external clock source instead of a dedicated oscillator circuit. This can be useful when you need to synchronize multiple microcontrollers or when you have a high-precision clock source available.

Implementation

To use an external clock, connect the clock source to the XTAL1 pin and leave XTAL2 unconnected. Ensure the external clock meets the 8051’s timing specifications.

2. Frequency Multiplication

Some 8051 variants include on-chip Phase-Locked Loops (PLLs) that can multiply the input clock frequency. This allows you to use a lower frequency crystal while still achieving high operating speeds.

Advantages

• Reduced EMI: Lower frequency external oscillator produces less electromagnetic interference.
• Cost savings: Lower frequency crystals are generally less expensive.

3. Temperature Compensated Oscillators

For applications requiring extreme precision across a wide temperature range, consider using a Temperature Compensated Crystal Oscillator (TCXO) or even an Oven Controlled Crystal Oscillator (OCXO).

Implementation

These specialized oscillators typically provide a clock output that can be connected directly to the 8051’s XTAL1 pin, with XTAL2 left unconnected.

Conclusion

The oscillator circuit is indeed the heartbeat of your 8051 microcontroller, dictating its performance and reliability. By understanding the various types of oscillator circuits, their advantages and disadvantages, and how to implement them effectively, you’re well-equipped to make the best choice for your specific application.

Remember, while the oscillator circuit is crucial, it’s just one part of a successful 8051 project. Combine your knowledge of oscillators with solid programming practices, efficient PCB design, and thorough testing to create robust and reliable embedded systems.

Whether you’re working on a simple hobby project or a complex industrial application, the right oscillator circuit will ensure your 8051 microcontroller performs at its best, keeping time with precision and reliability. Happy designing!
